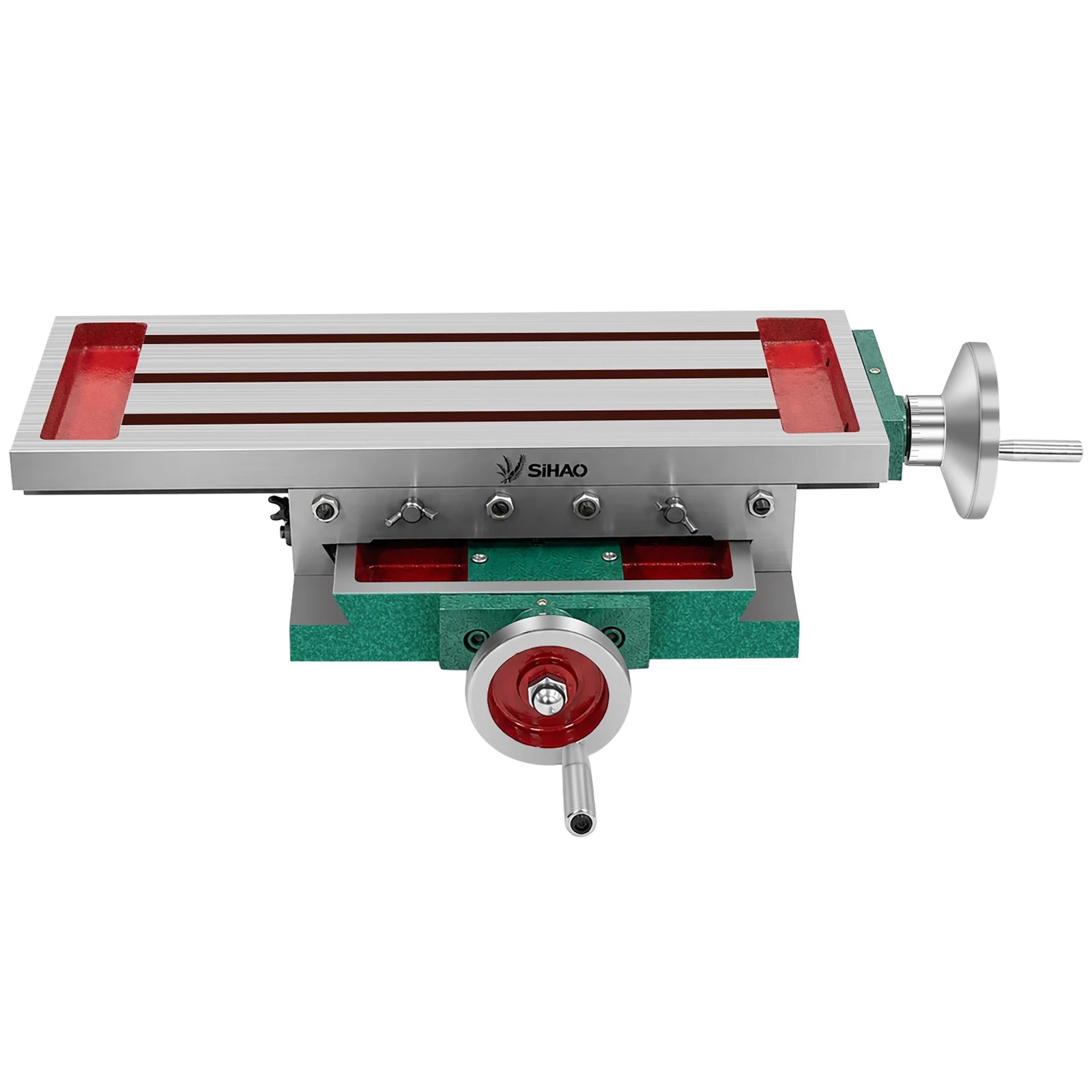

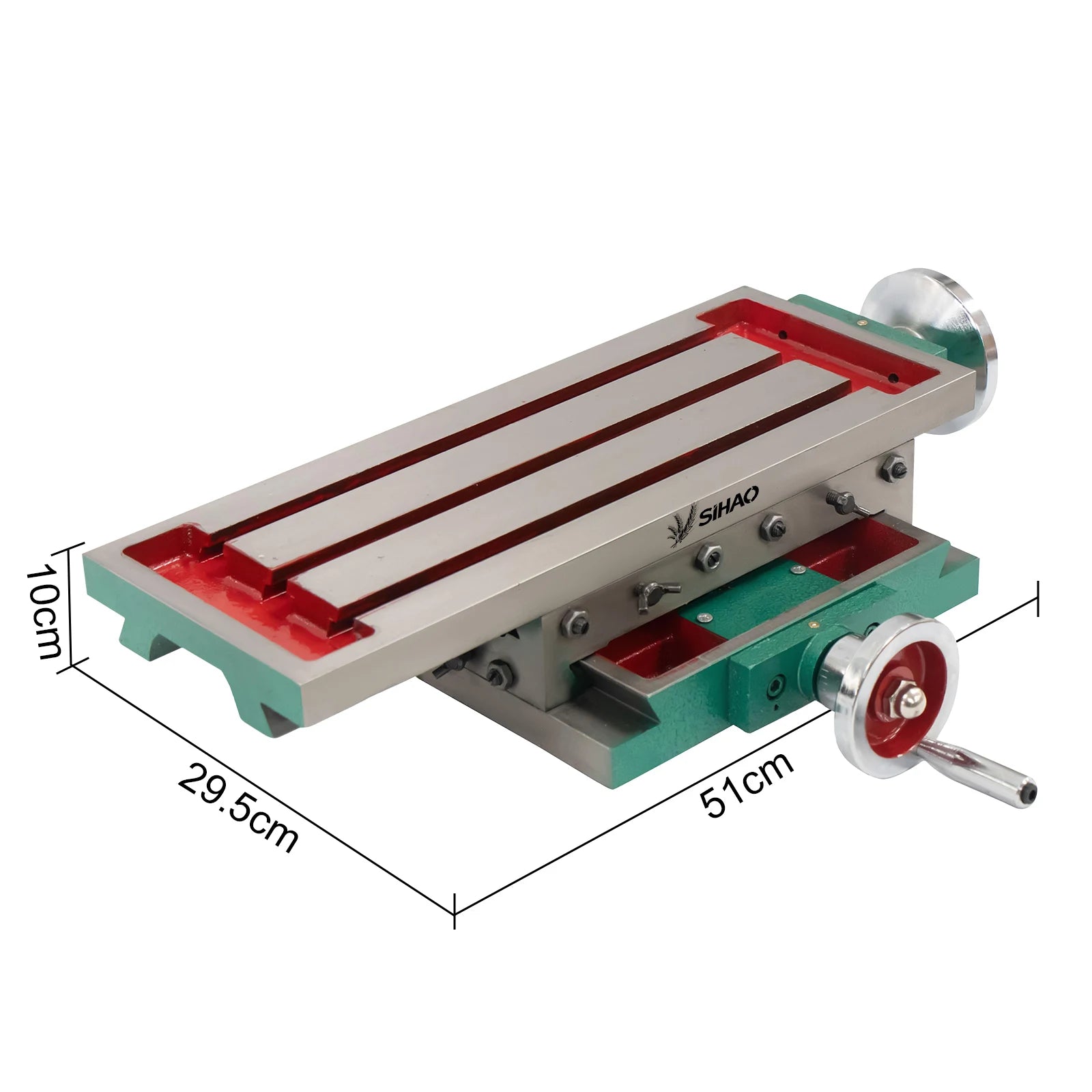

SIHAO Cross Slide Milling Table – 2-Axis Compound Vise for Drill Press, Bench Grinder & Positioning
450x170 mm / Czech Republic
$158.99
Precio de oferta
$158.99
Precio habitual
$0.00
Ir directamente a la información del producto
8logo-GZT170SZ4517V0
SIHAO Cross Slide Milling Table – 2-Axis Compound Vise for Drill Press, Bench Grinder & Positioning
$158.99
Precio de oferta
$158.99
Precio habitual
$0.00
Warranty: We will provide a one-year warranty and solve all your after-sales problems!

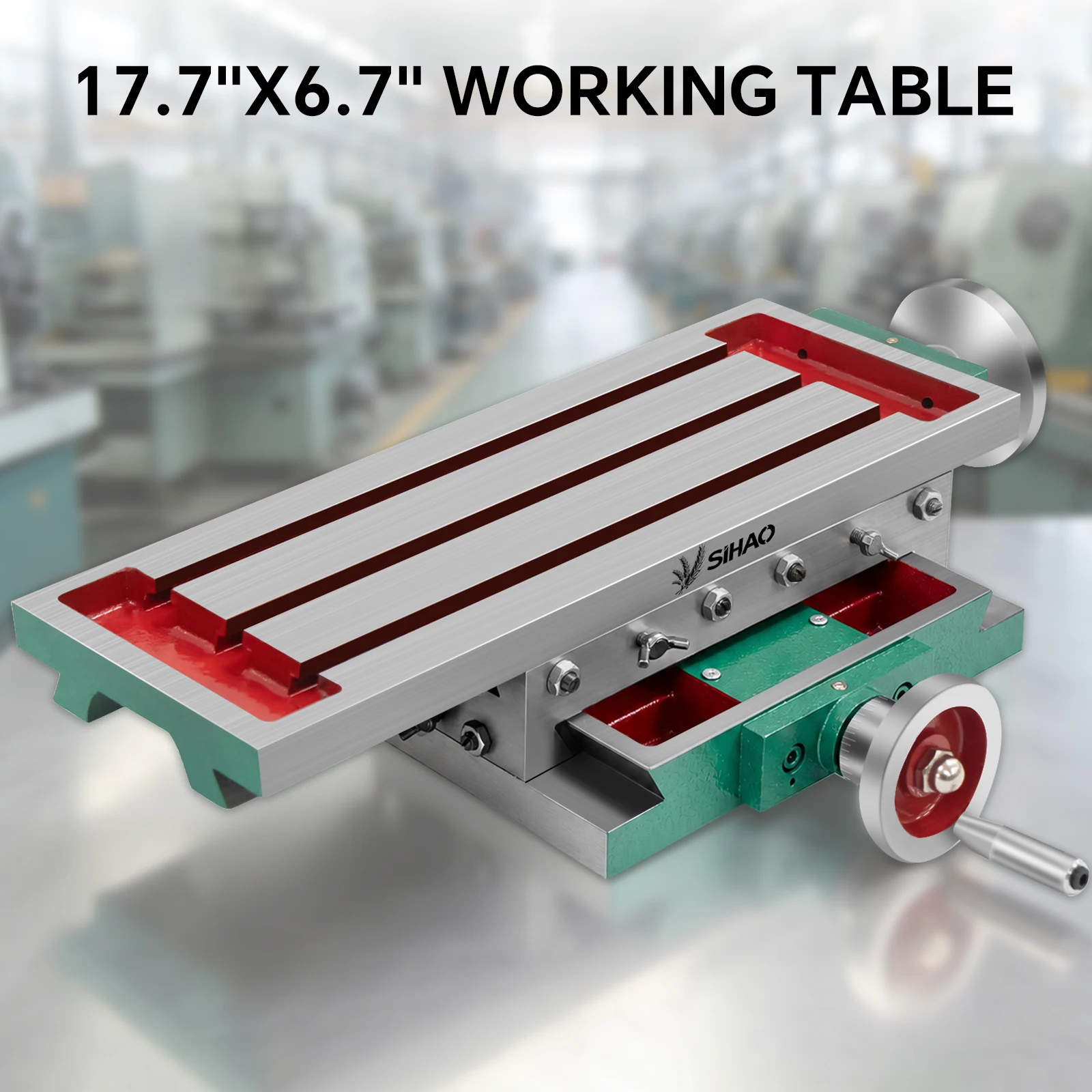

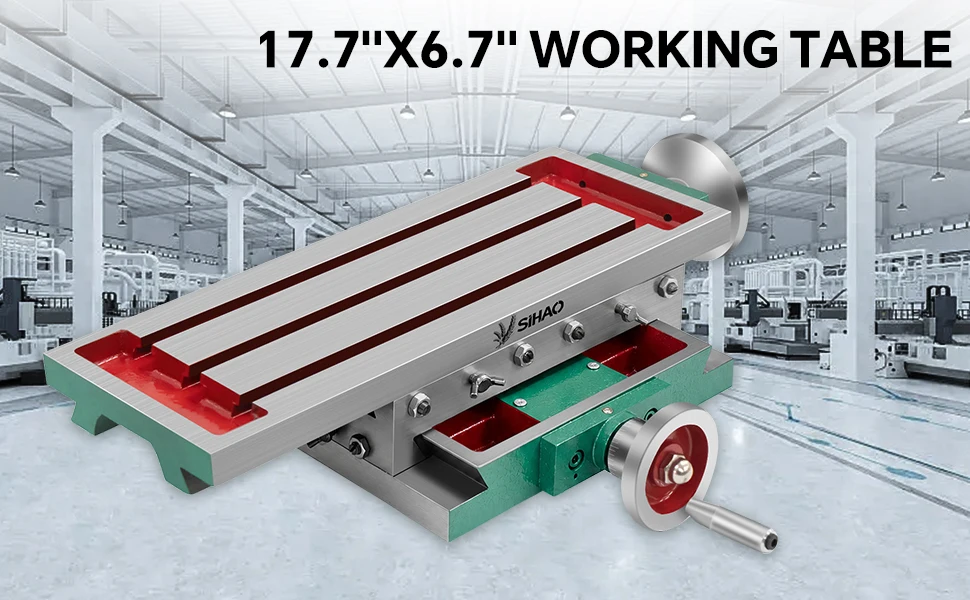

5.5/6.7 /7.5in Milling Machine Worktable

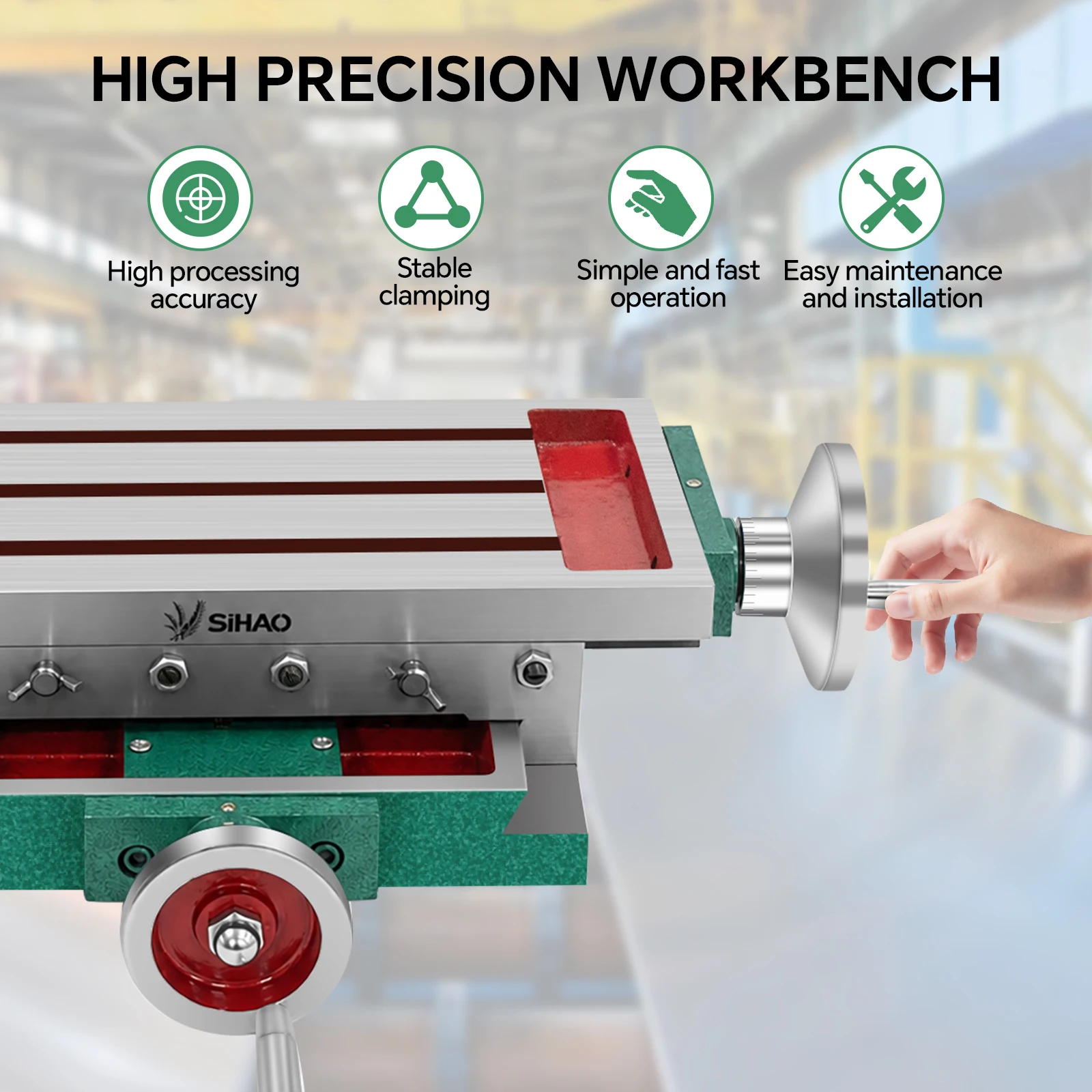

Large Worktable & Flexible Movement & High Precision
-
The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations.
-
Premium Quality Structure
-
Highly Polishing & Stiffness
-
Adjustment in X Y Direction
-
Tightness Adjustment
Tough Equipment & Tools, Pay Less
Sihao is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, Sihao is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, Sihao's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose Sihao?
-
Premium Tough Quality
-
Incredibly Low Prices
-
Fast & Secure Delivery
-
30-Day Free Returns
-
24/7 Attentive Service
Key Features
Heavy-duty Cast Iron
Made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.
T Groove Fixing Design
The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.

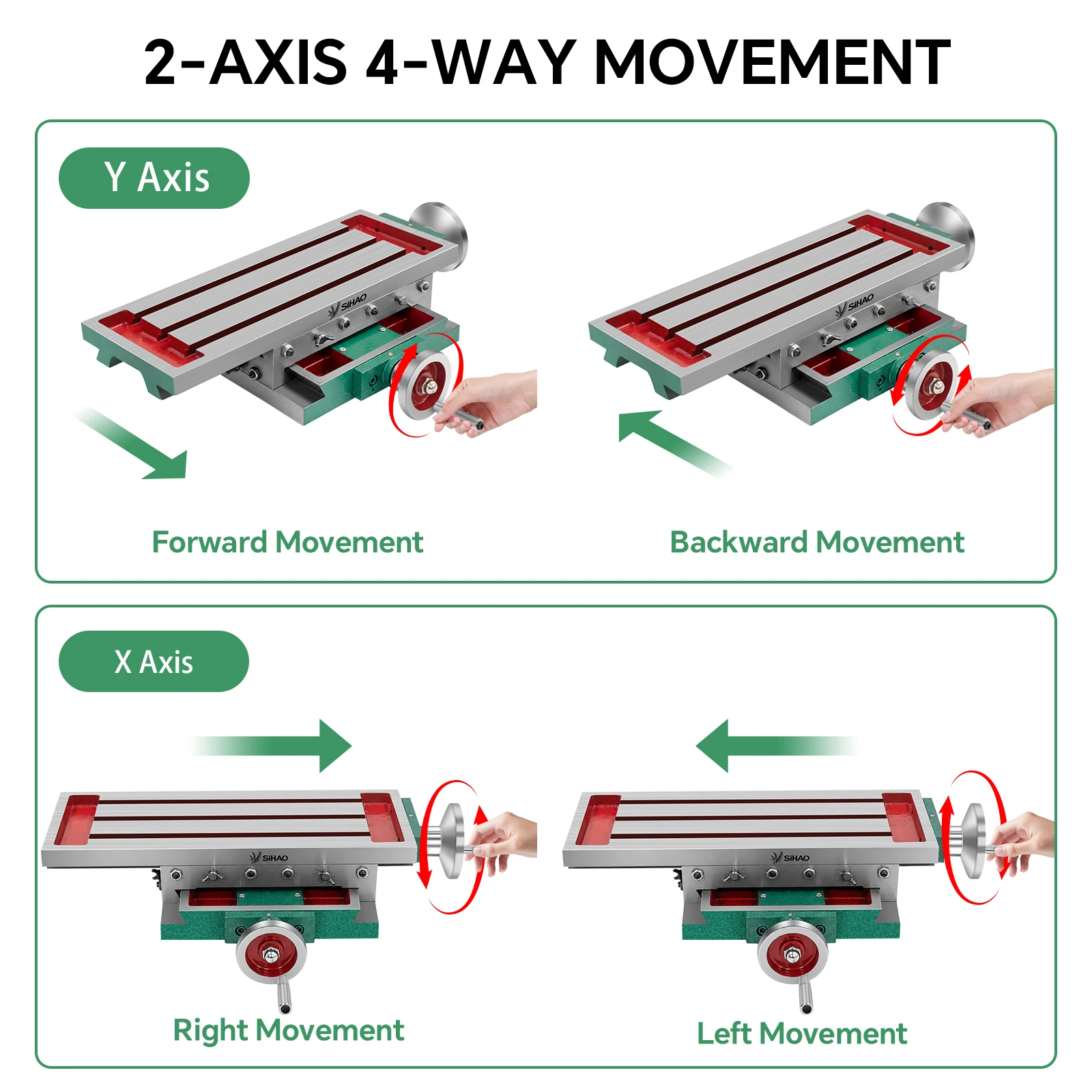

2 Axis Movement
X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.

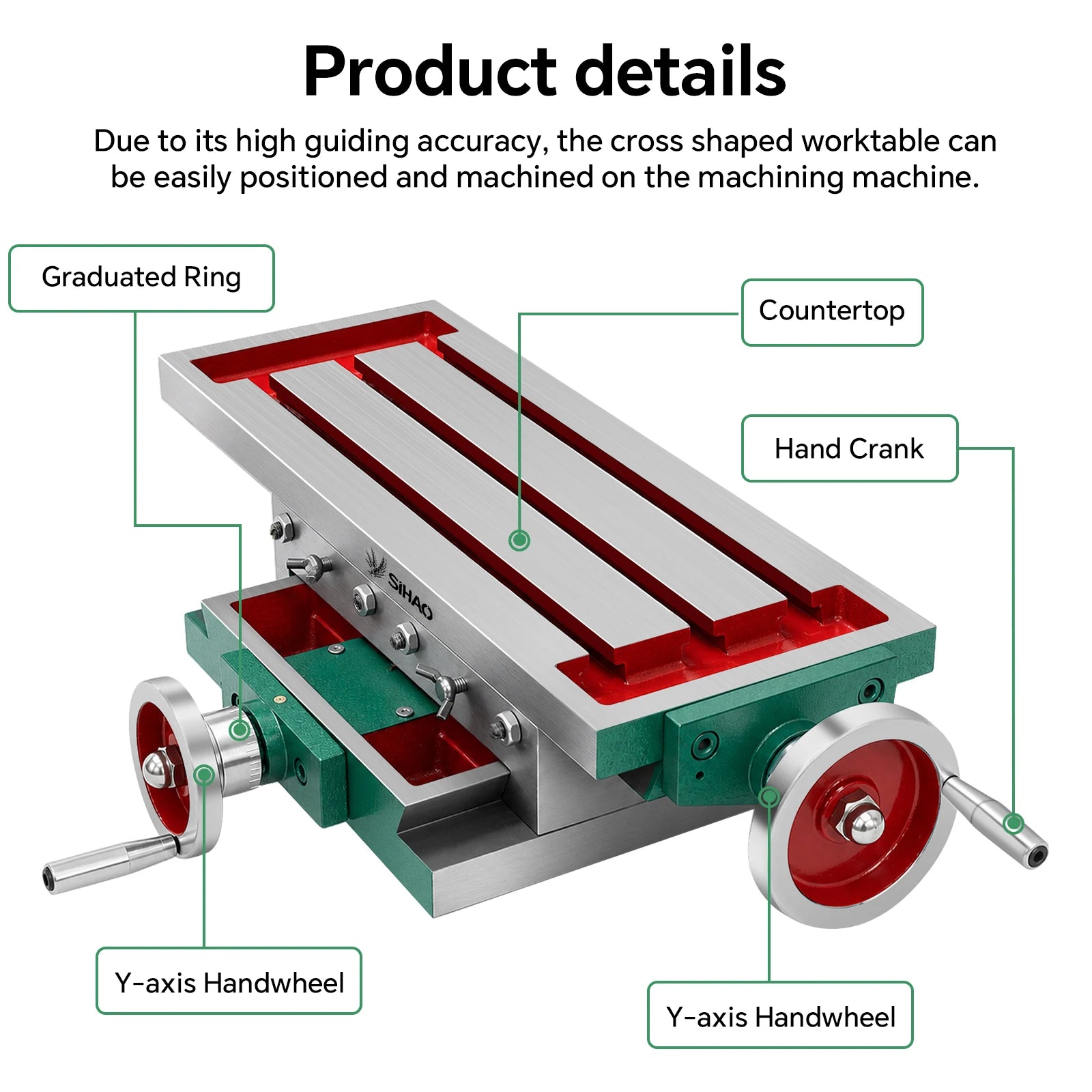

Adjustable Handle
A metal handle with good texture is easy to adjust the directions. With a clear scale on it, the milling machine will be more accurate when in use.
Quality Bolts & Nuts
The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.

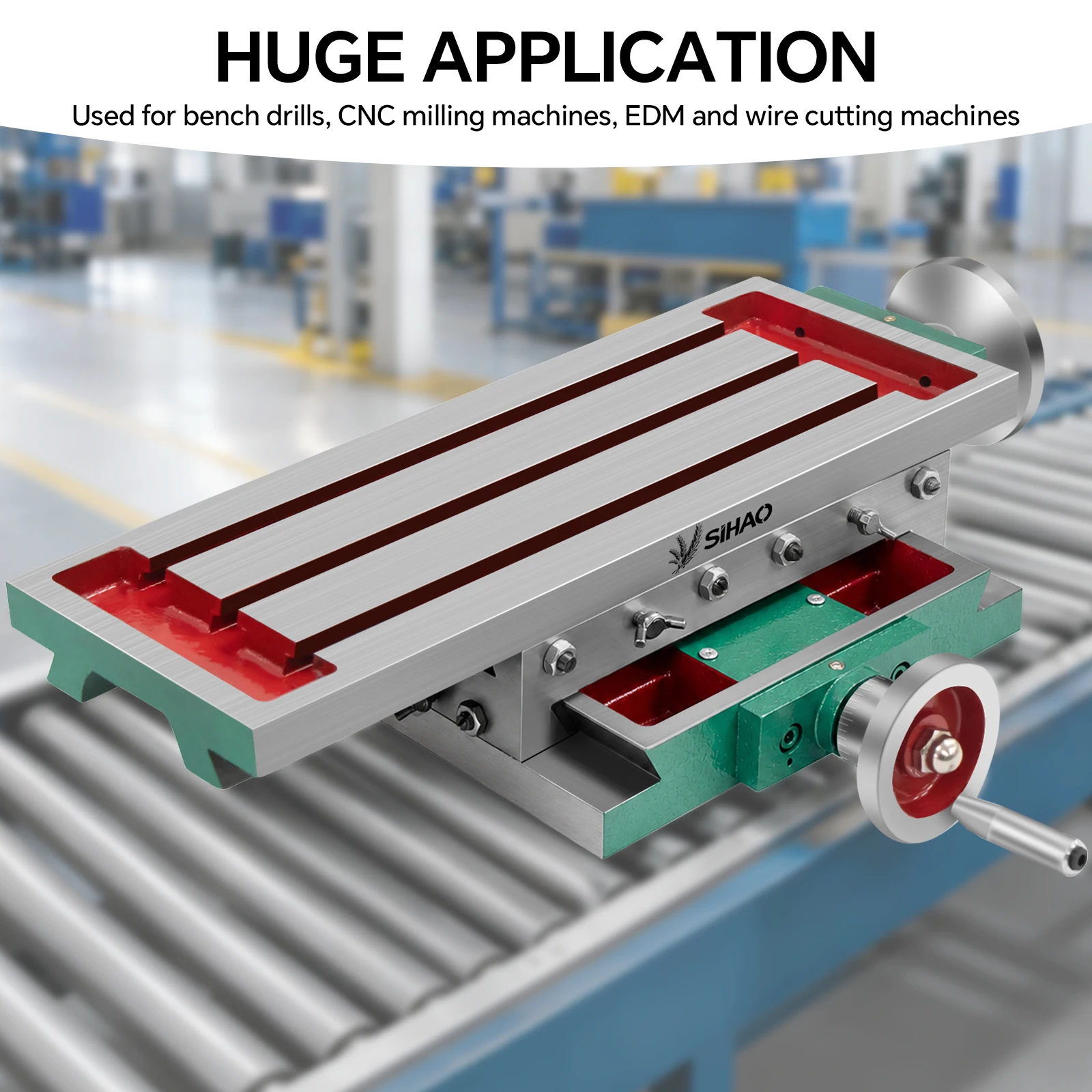

Extensive Application
This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.
Specifications
350×140 mm/450×170 mm/550×190 mm
13.8×5.5 in/17.7×6.7in/21.7×7.5in
-
Worktable length: 350/450/550mm
-
Worktable width:140/170/190 mm
-
Transverse travel(X-Route): 8.3 in / 210 mm
-
Longitudinal travel(Y-Route): 4.3 in / 110 mm
-
Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
-
Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
-
Chassis Size: 10 x 9 in / 26 x 23 cm
-
Overall height: 3.9 in / 100 mm
-
Net Weight: 20.5/26/37 kg
-
Item Dimensions(L x W x H) : 43.5x30.5x12cm 57x35x18cm 63.5x40x14cm

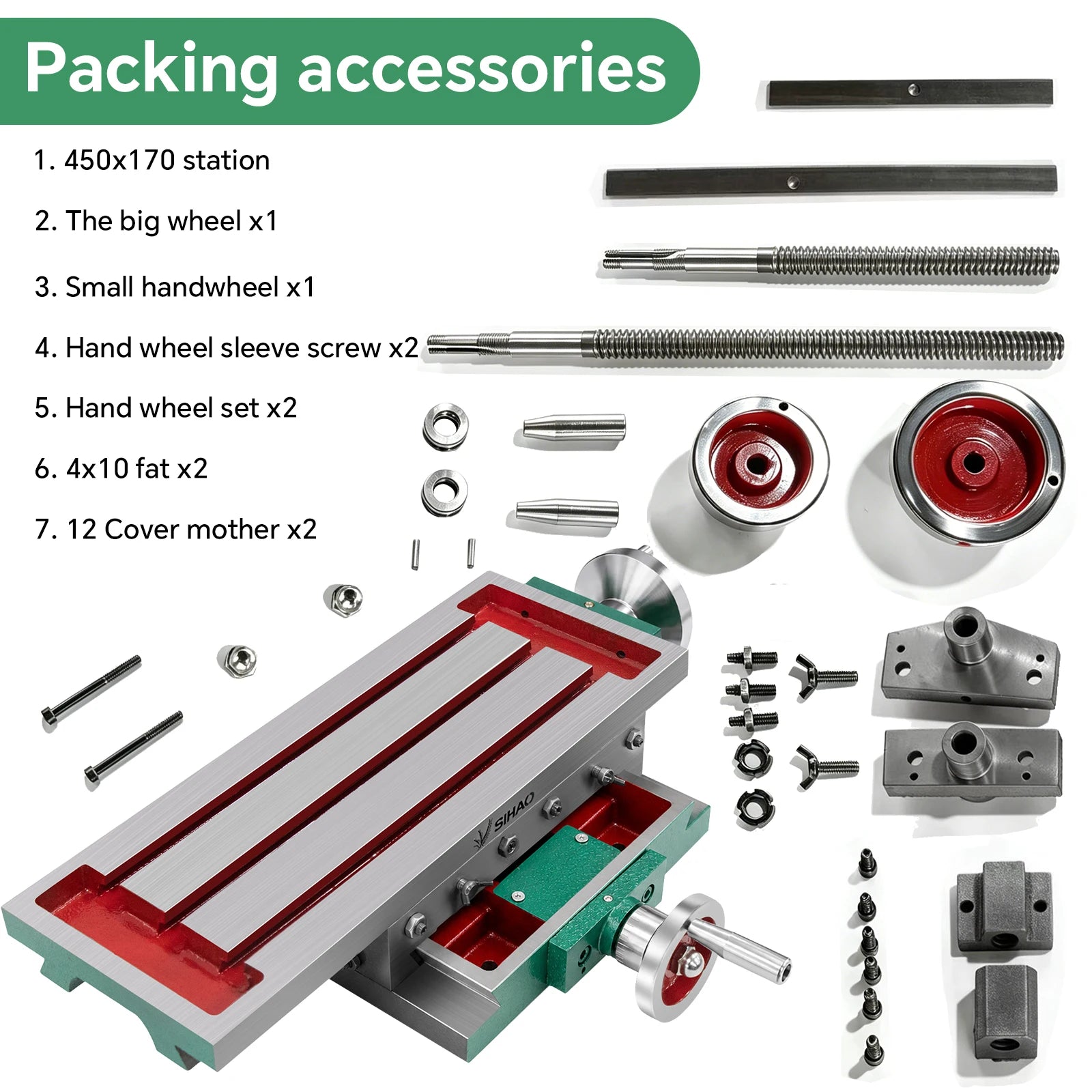

Package Content
-
1. 450x170station
2. The big wheel x1
3. Small handwheel x1

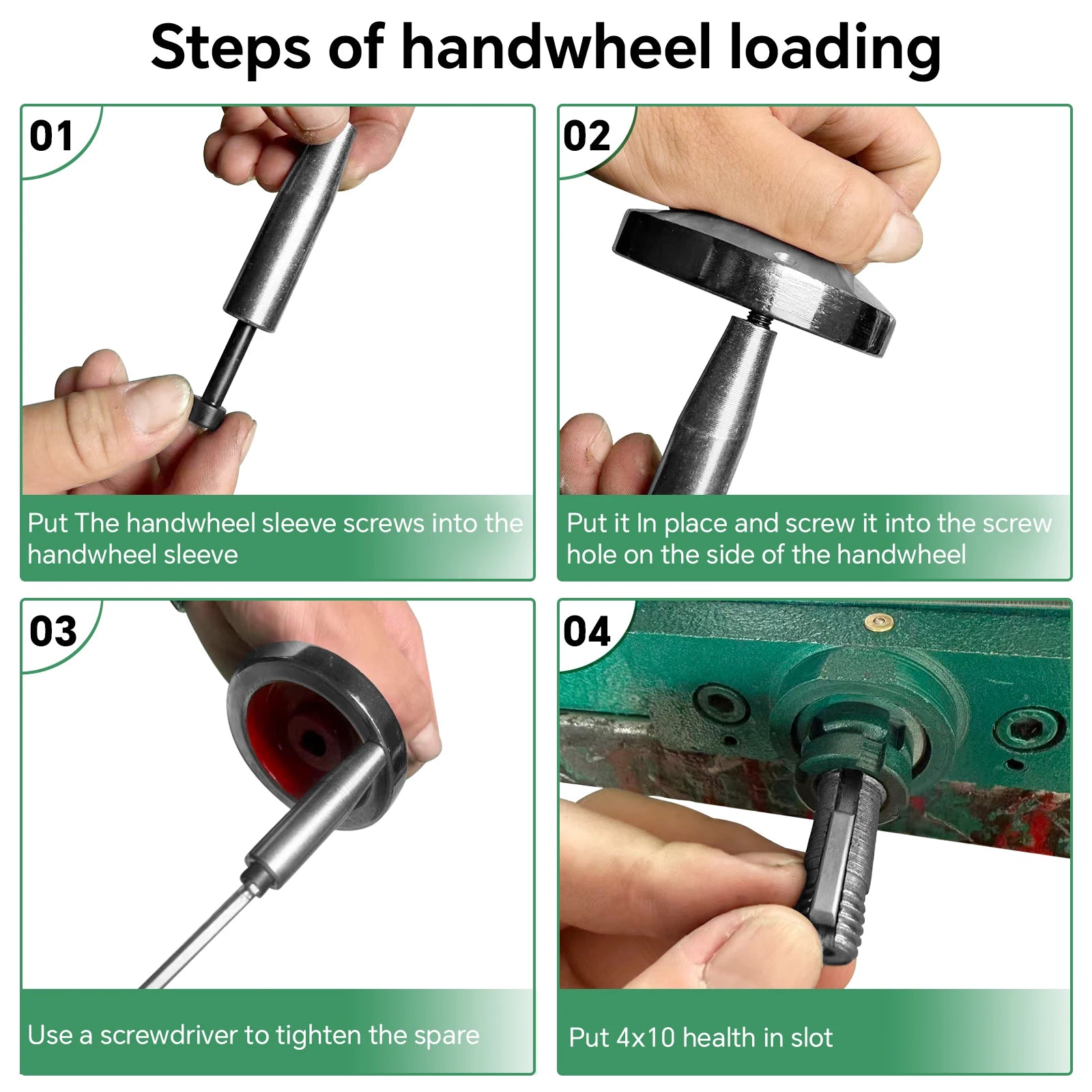

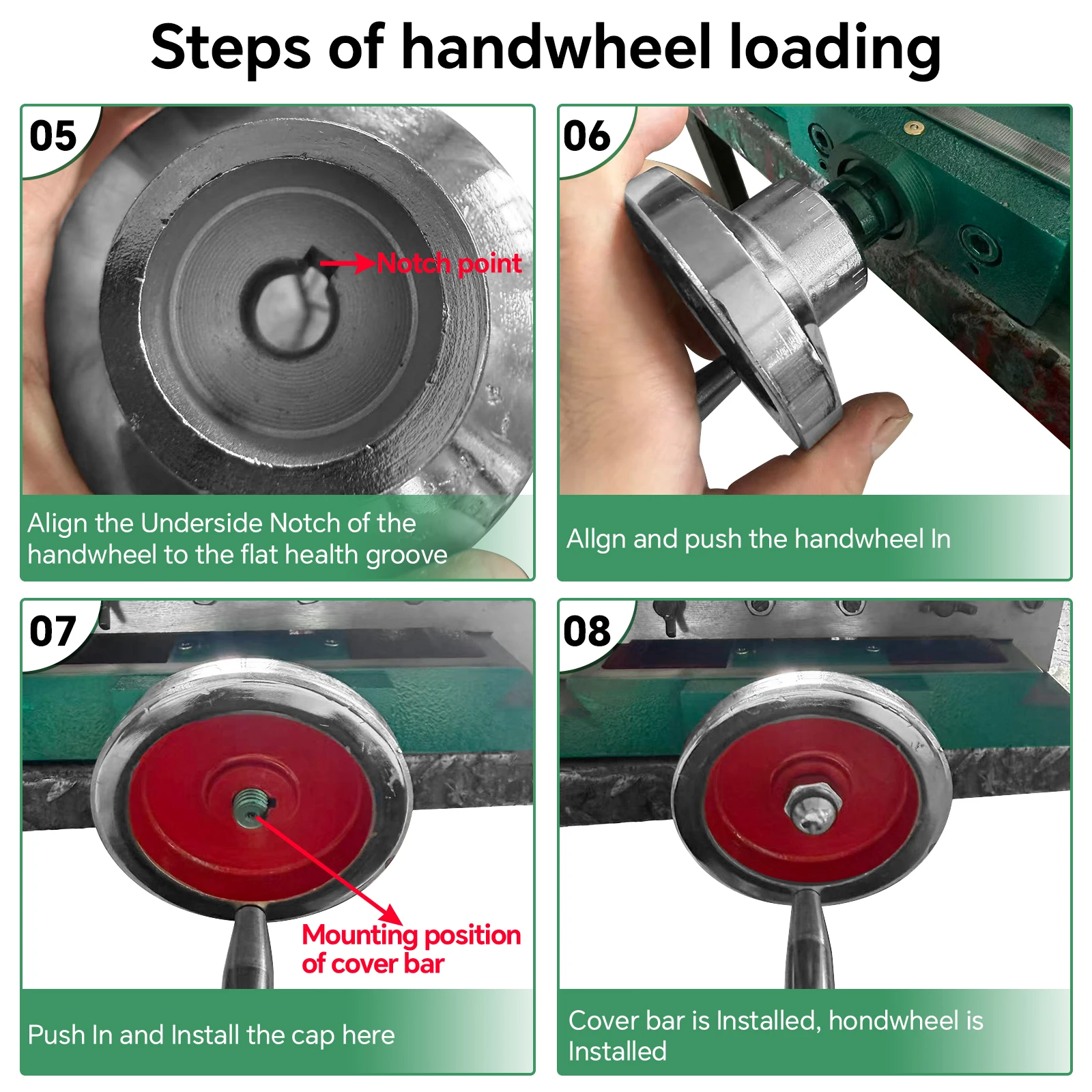

4. Hand wheel sleeve screw x2
5. Hand wheel set x2
6.4x10fatx2
7.12 Covermother x2
