Products Description

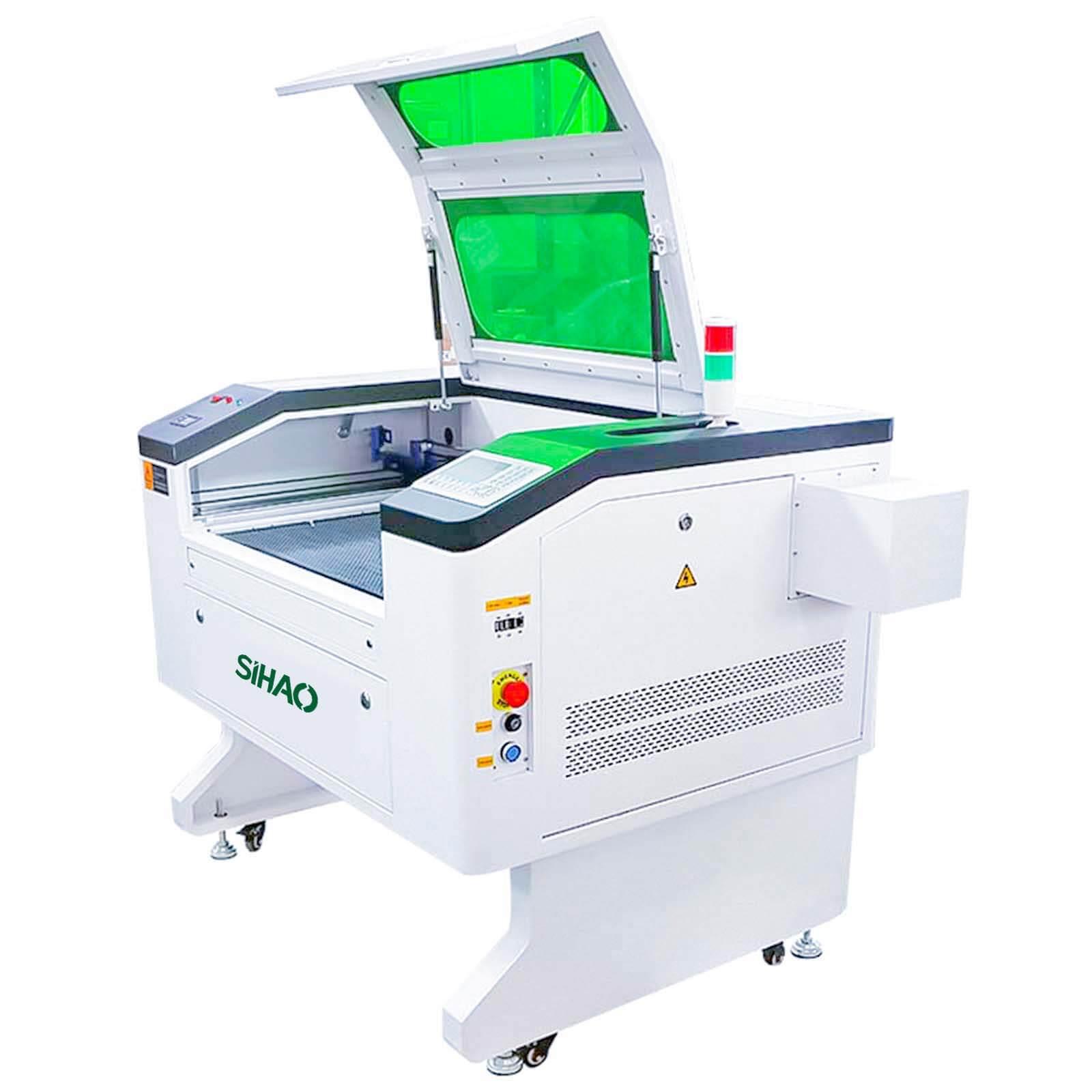

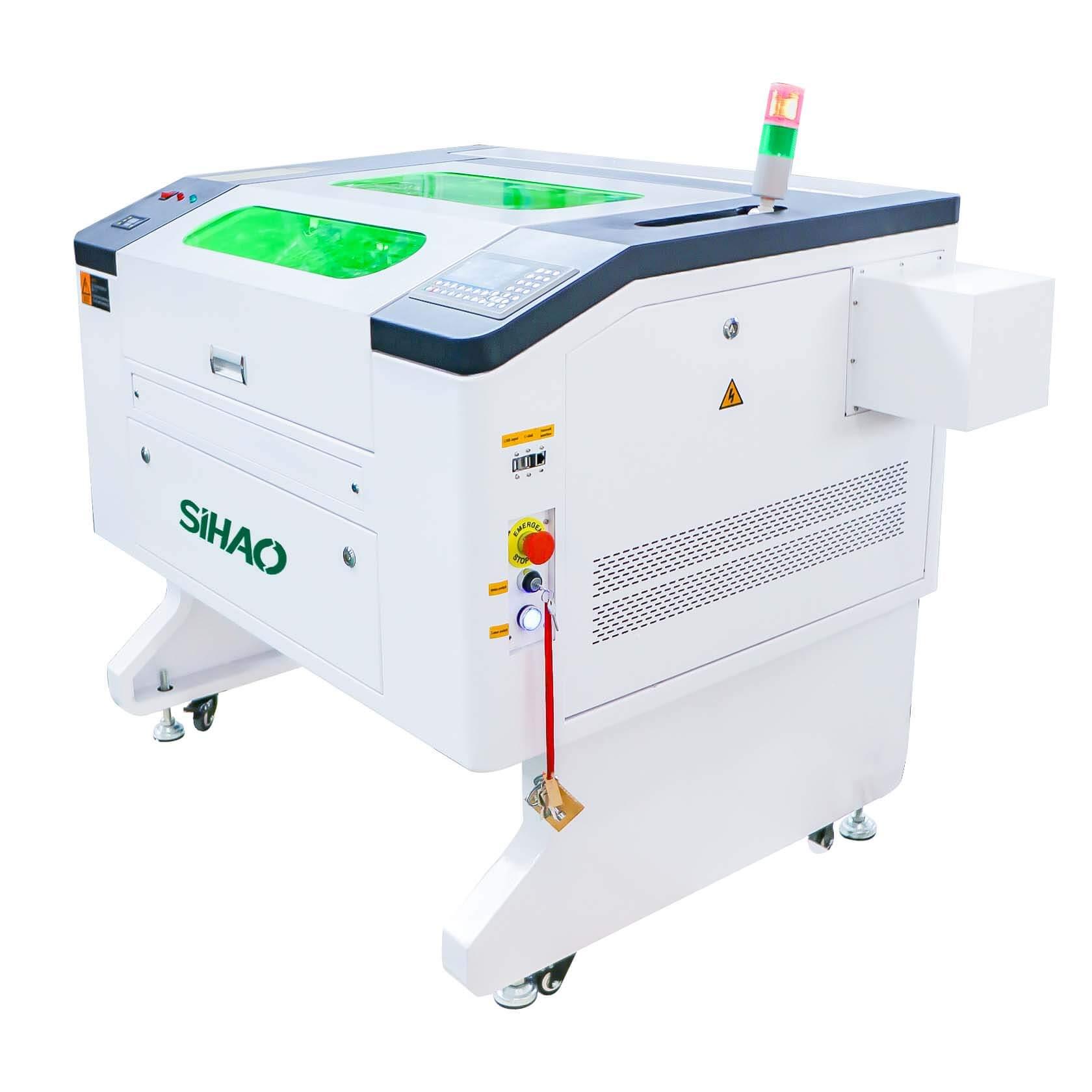

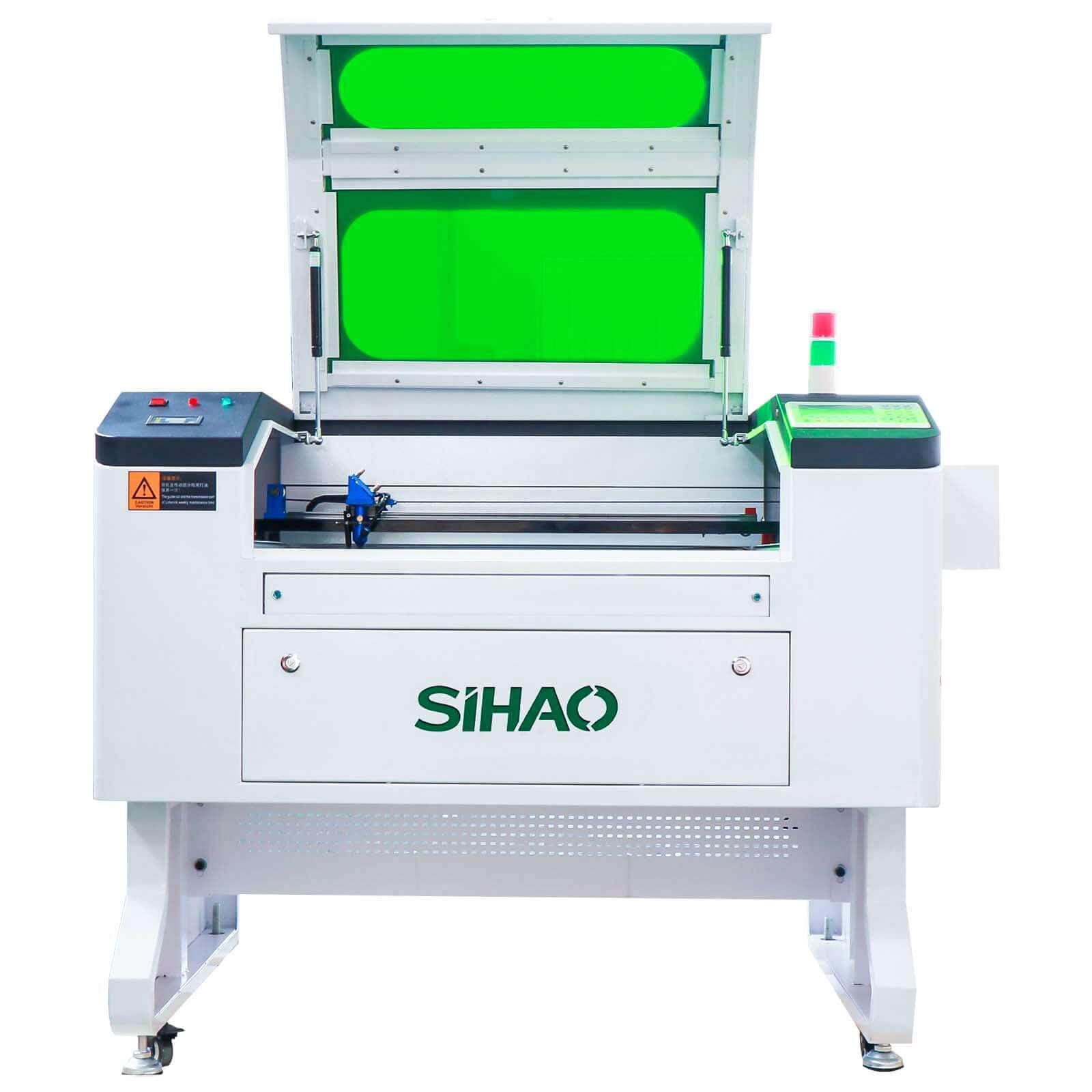

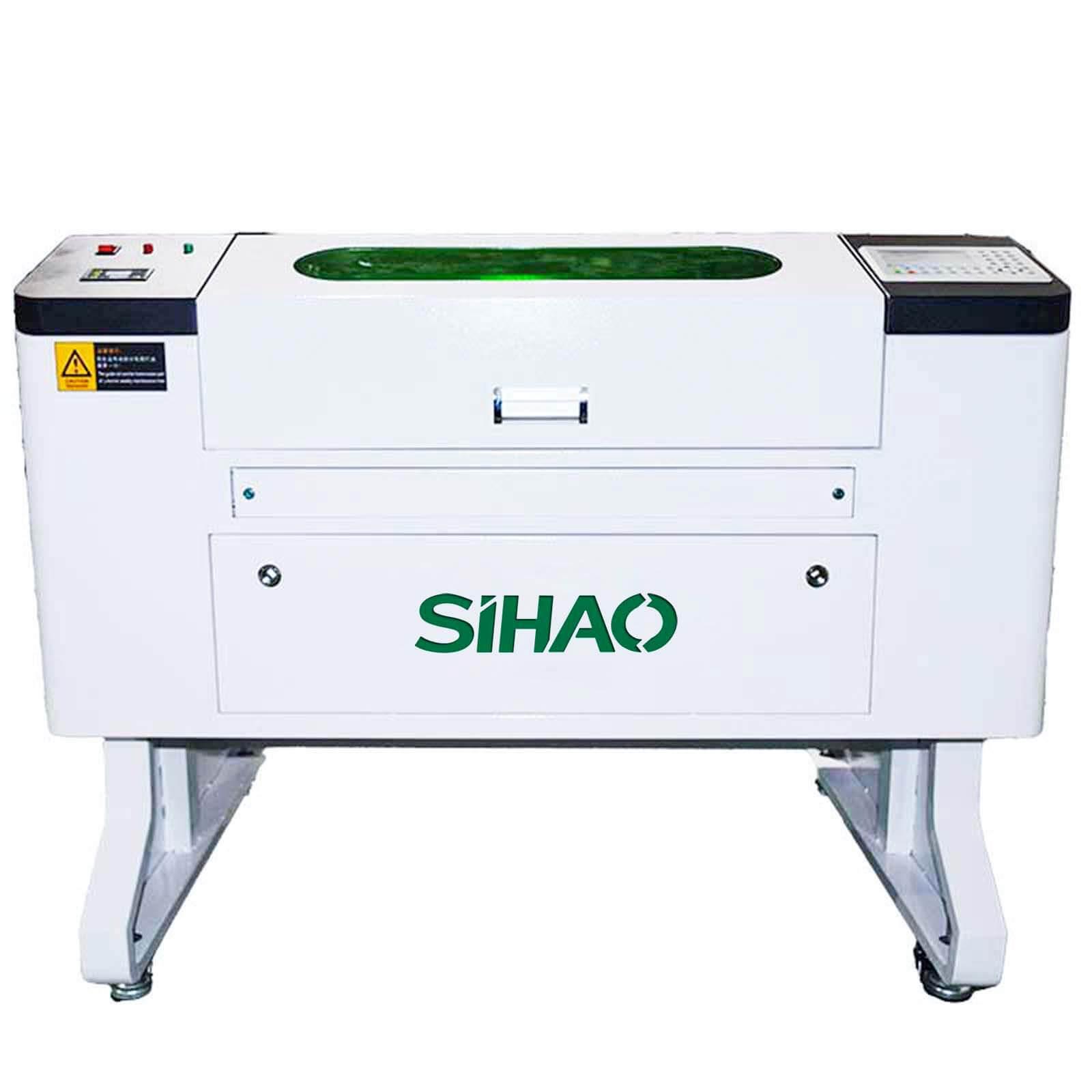

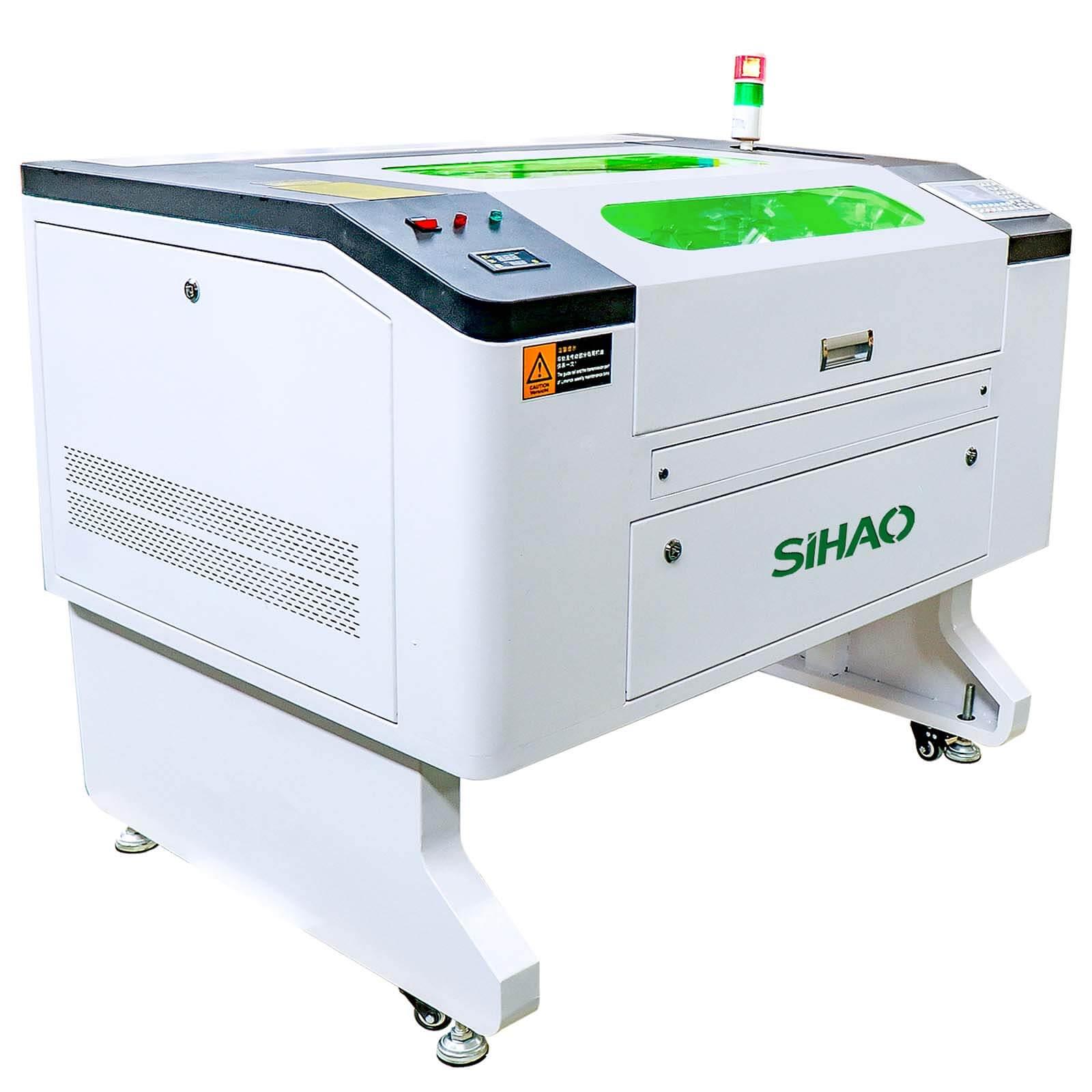

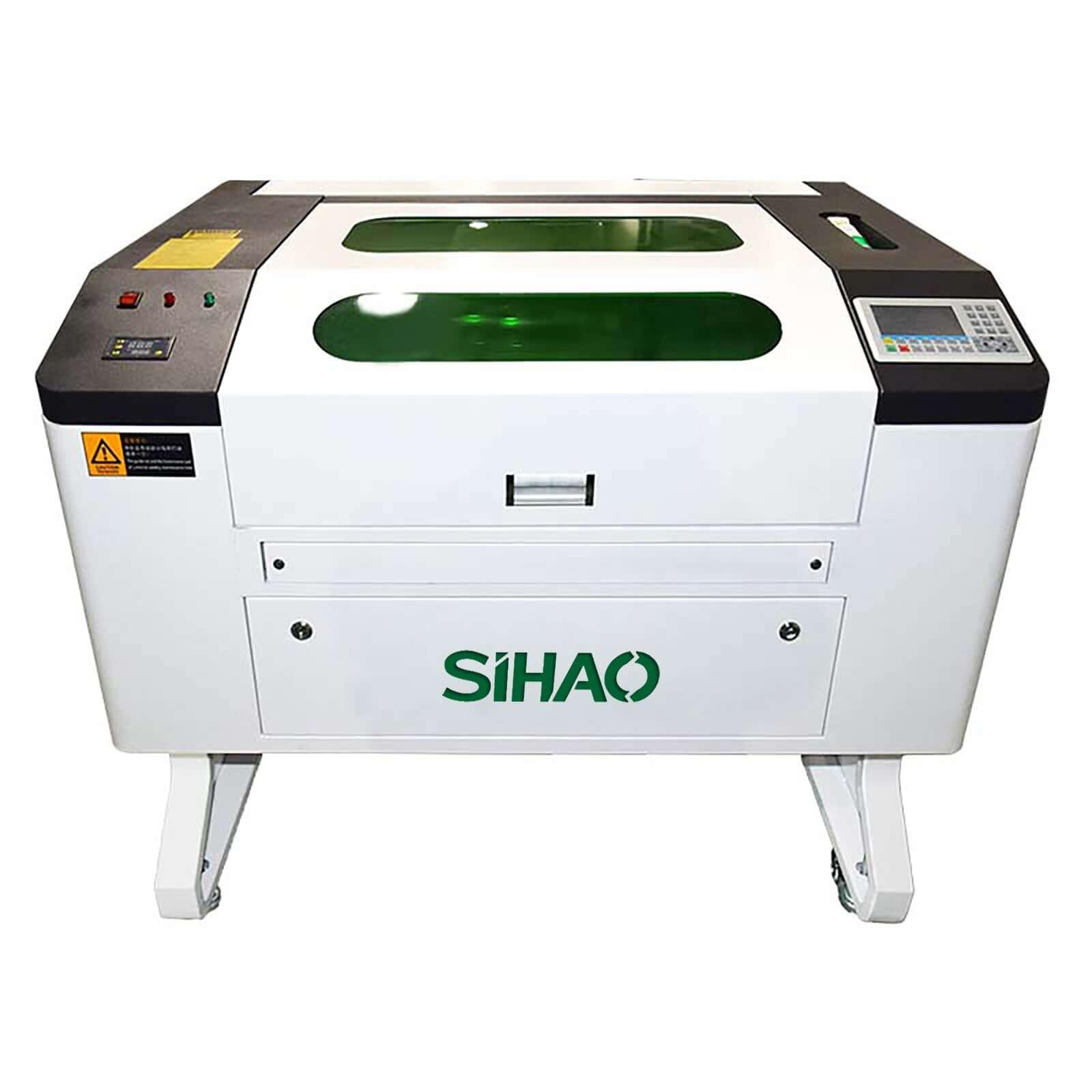

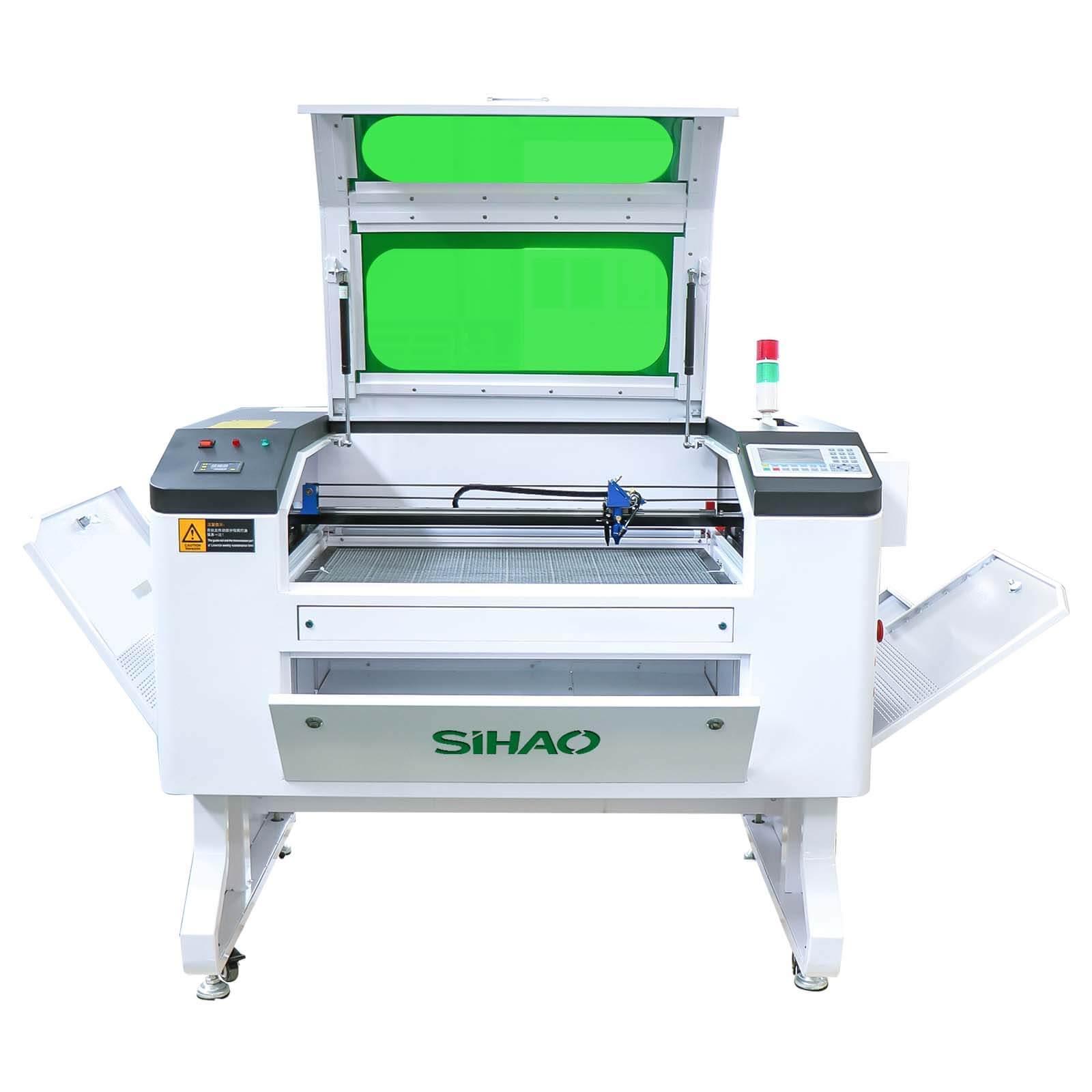

- This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
| DATA TRANSMISSION | USB2.0 /U DISK /NETWORK CABLE TRANSMISSION |
| ENGRAVING AREA | 700×500MM |
| ENGRAVING SPEED | 0-500MM/S |
| COOLING MODE | WATER COOLING AND AIR COOLING |
| LASER POWER | 60W/80W/100W/130W |

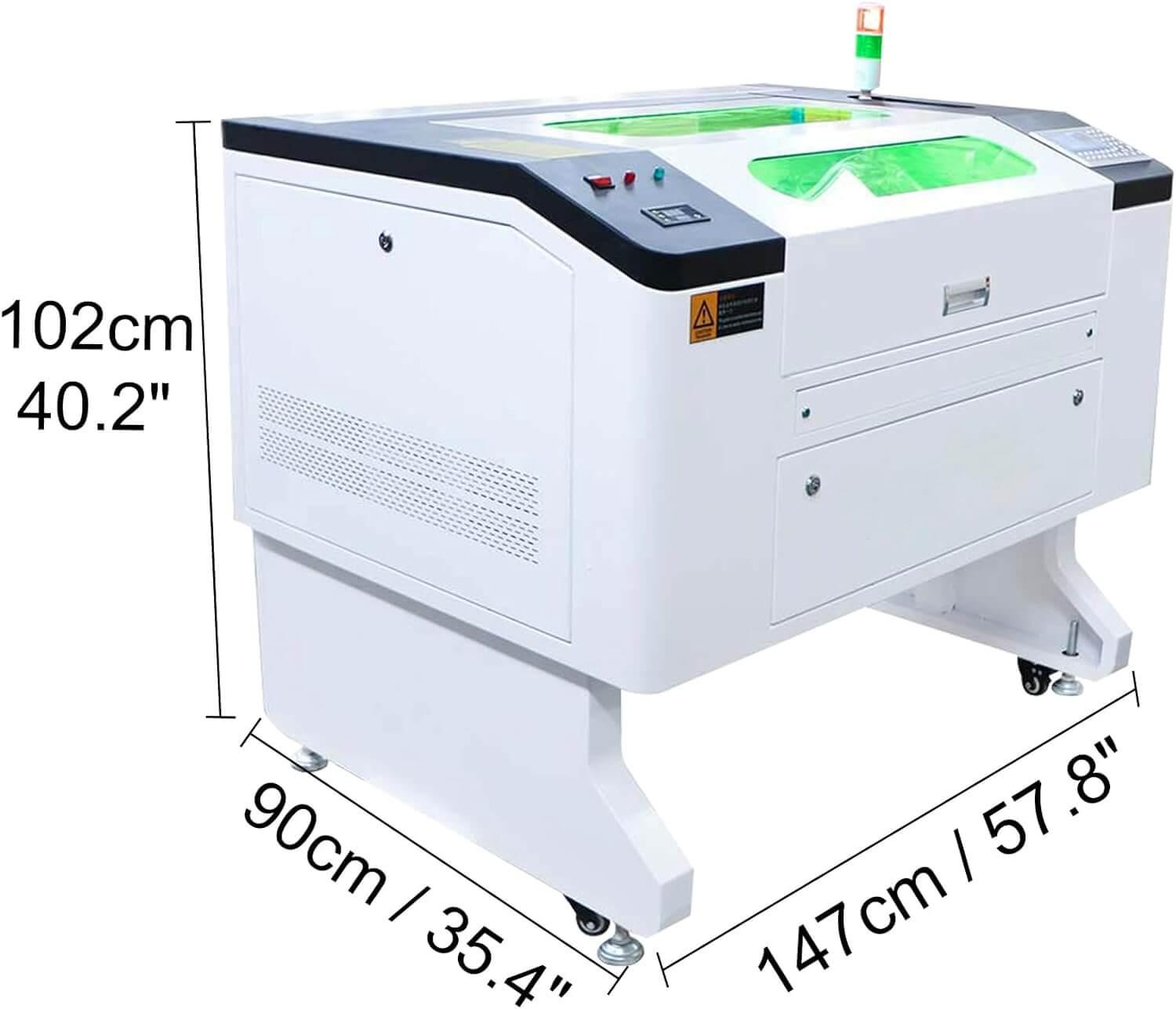

| DIMENSION(L*W*H) | 1580×1000×1140MM |
| WEIGHT(KG) | 230KG |
| APPLICABLE MATERIAL | ACRYLIC/CRYTAL/GLASS /LEATHER /MDF/PAPER/PLASTIC |
| GRAPHIC FORMAT SUPPORTED | Al,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| LASER TUBE | SEALED CO2 GLASS TUBE |
MACHINE ACCESSORIES
- Maintenance tools
- Smoke pipe
- Software U disk
- Data cable
- Grounding cable
- Power cable
Package content
- 1 x Laser Engraving software Package (English Version)
- 1 x User Manual (CD)
- 1 x Water Pump
- 1 x Air exhaust fan
- 1 x Air Pump
- 1 x Communication cable
- 3 x Reflect optics (installed in the machine)
- 1 x Focus optics (installed in the machine)
- 1 x Laser tube
