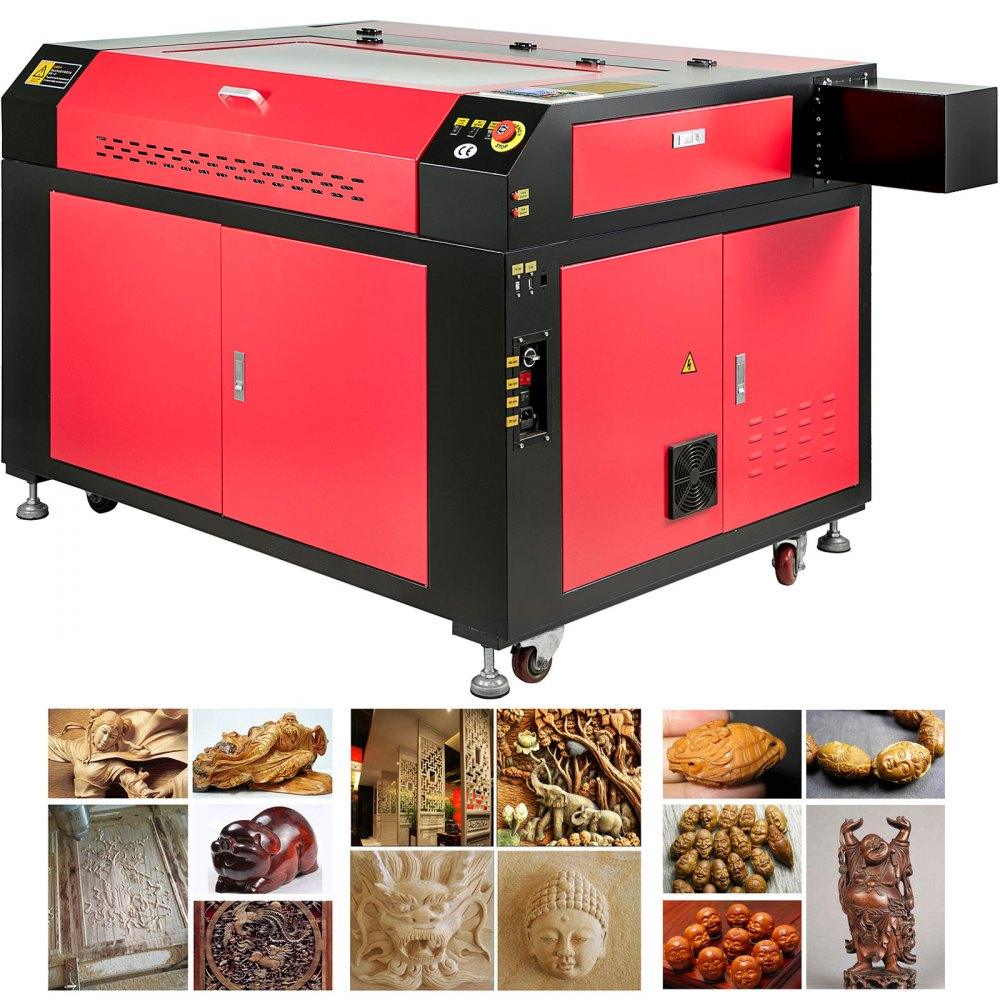

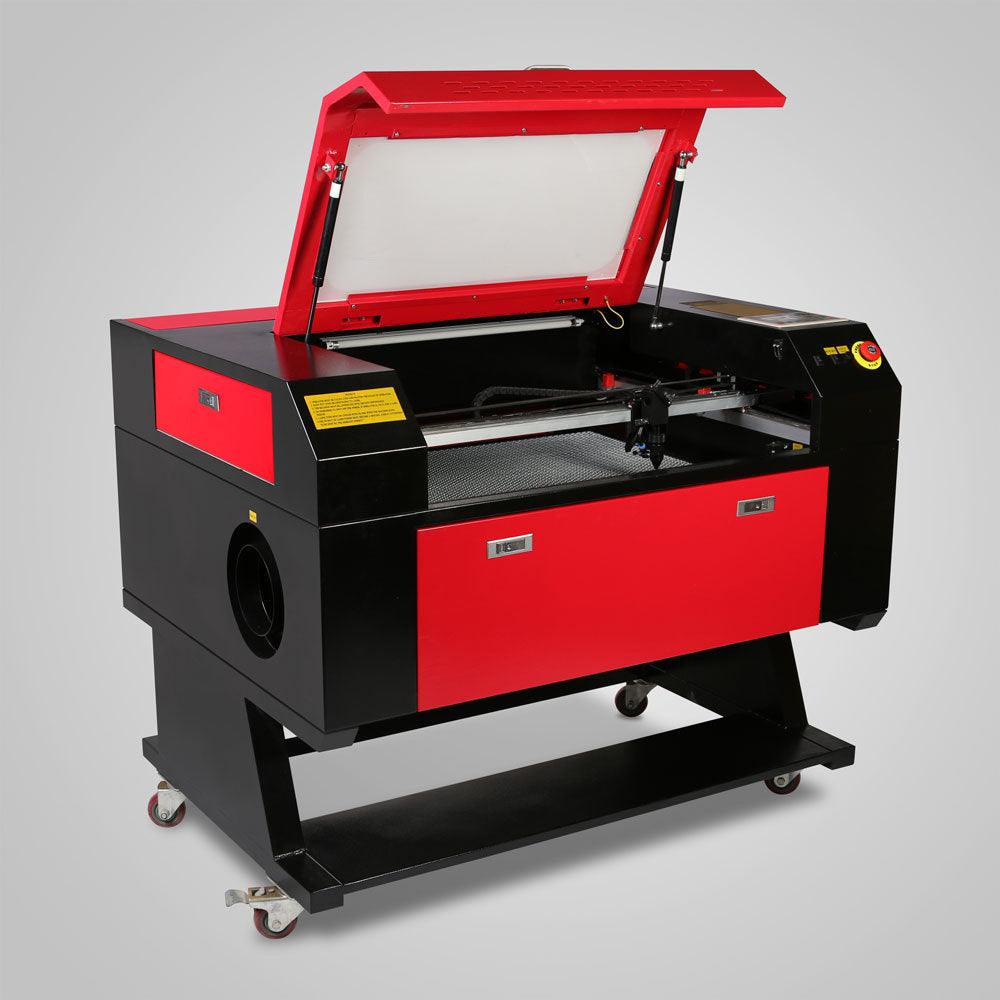

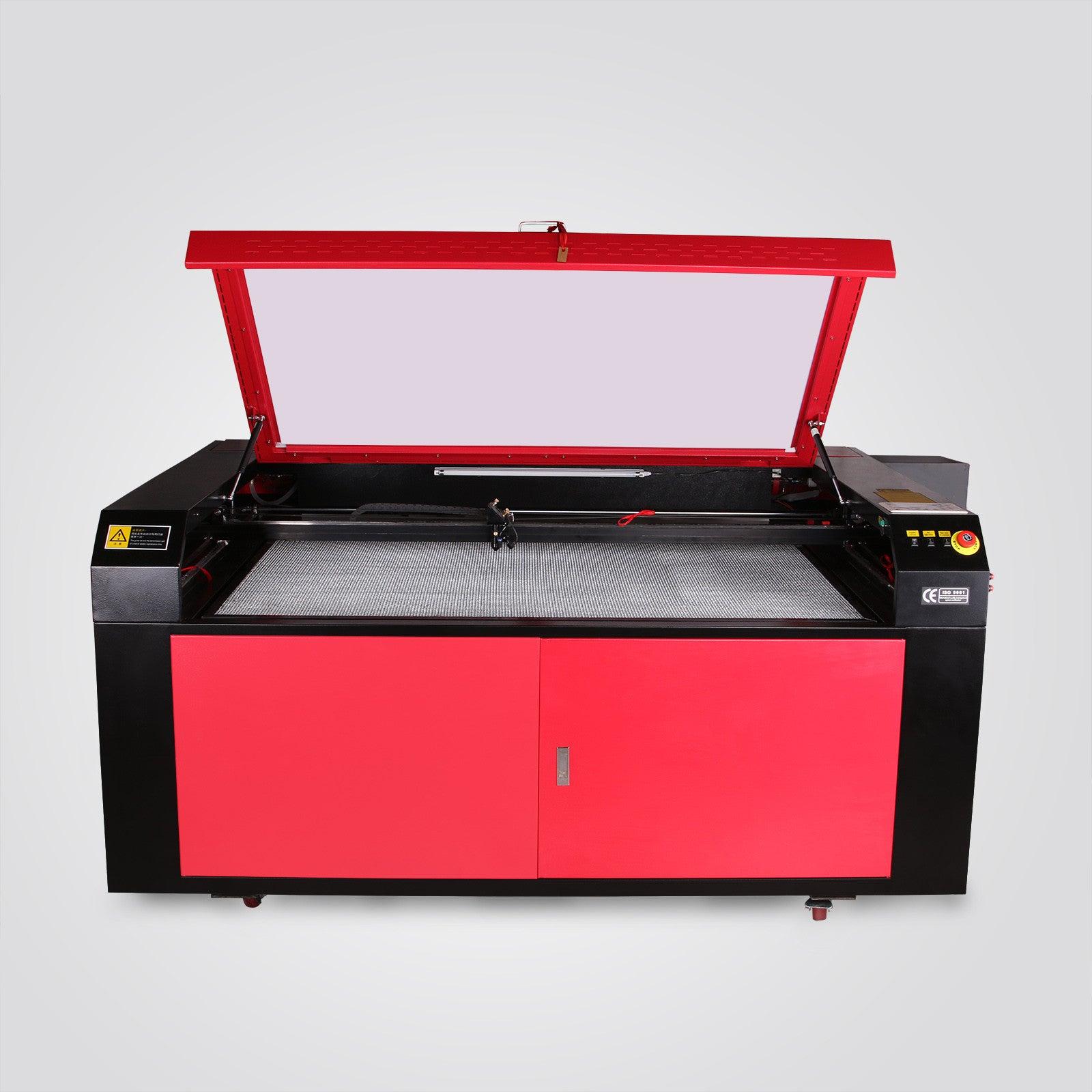

SIHAO KH9060 Laser Engraving Machine CO2 Laser Cutting Machine Non-metallic Material Cutting Machine

Brand:
VEVOR
Control method:
Manual, automatic, CNC
Model:
KH9060DKJ100W0001V2
Current type:
AC/DC

Introduce:

New laser engraving and cutting machine. This machine is a laser engraving machine system equipped with a CO2 laser tube, which is used for engraving on materials such as wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass, and is the most suitable first choice. Advertising, gifts, shoe materials, toys and other industry equipment. Supports multiple graphics formats such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI, etc. This machine is directly equipped with RDdraw DSP control system and supports both CoreDraw and Auto CAD and other advanced software. When you change the design file settings of the machine, it must be connected to the computer via USB cable, you can use a USB memory stick to transfer the file to the machine, or you can download it directly from the computer to the machine with a USB cable. Even on the same job, different color settings can be made in the software, and holes can also be punched. And the legs can be separated from the machine body. The machine has doors that can be opened to accommodate larger materials.

Applicable materials:

Wood, bamboo, jade, marble, plexiglass, crystal, plastic, clothing, paper, leather, Penelope, rubber, textile cutting, industrial prototypes, industrial markings, sign making, medical parts marking, aerospace, architectural modeling, Specialty Advertising, Plastic Manufacturing, Flexo Printing, Point of Purchase, Rubber Stamps, Photo Frames, Gift Manufacturing, Barcoding, Engraving, Spacer Cutting, Puzzles, Cabinets, Awards and Recognitions, Personalized Pens, Door Pulls, Decoupage Patterns, Games and Toys, Finger joints, inlays and coverings, fraternity paddles, music boxes, light switch plates, jewelry boxes, part markers, router templates, desk kits, scrap booking, photo albums, jewelry, crafts, Italian charm. All laser engraving machines cannot engrave and cut metal.

Applicable industries:

Advertising, arts and crafts, leather, toys, clothing, models, construction and decoration, computer embroidery and tailoring, packaging, papermaking and other industries.

Parameter:

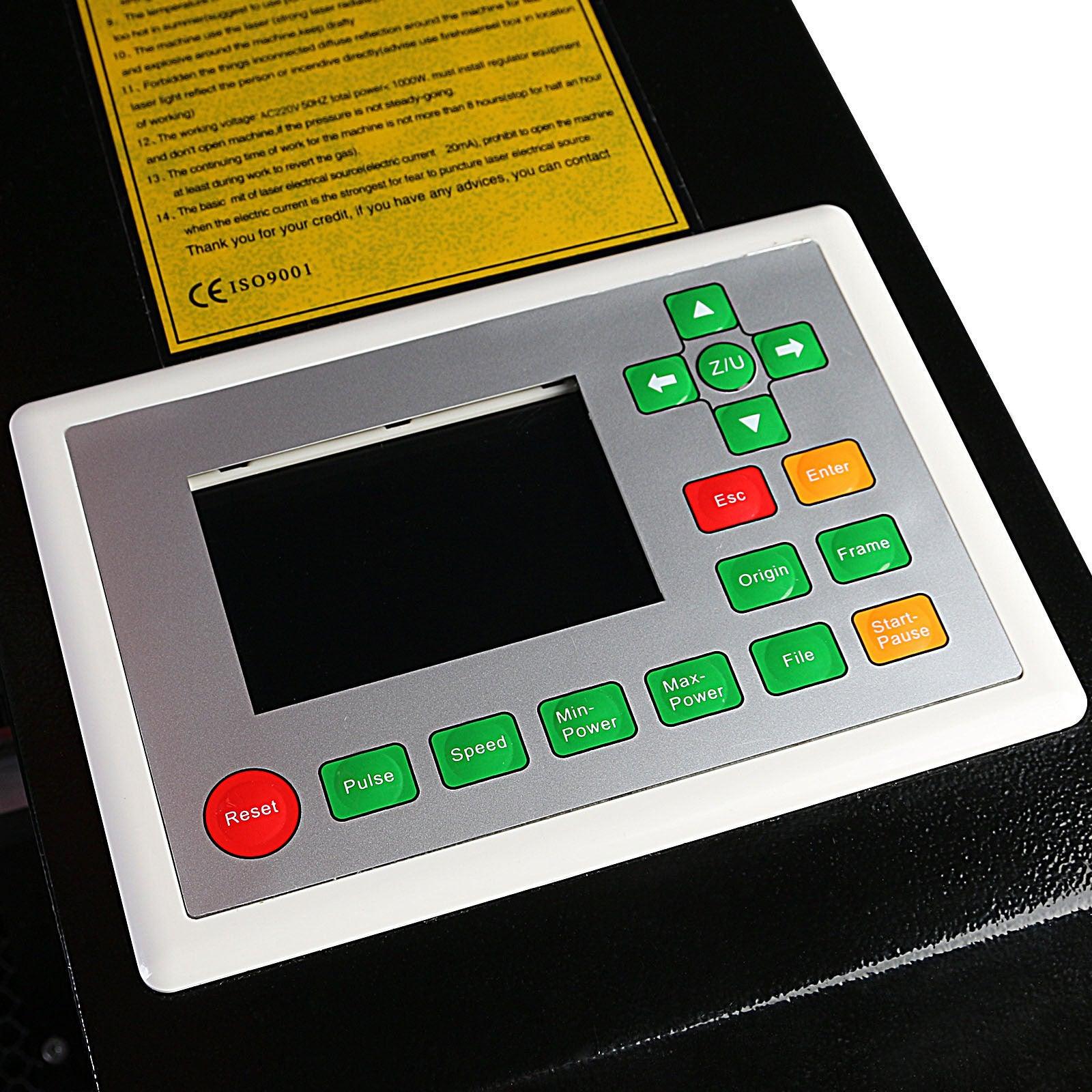

·Control system: DSP

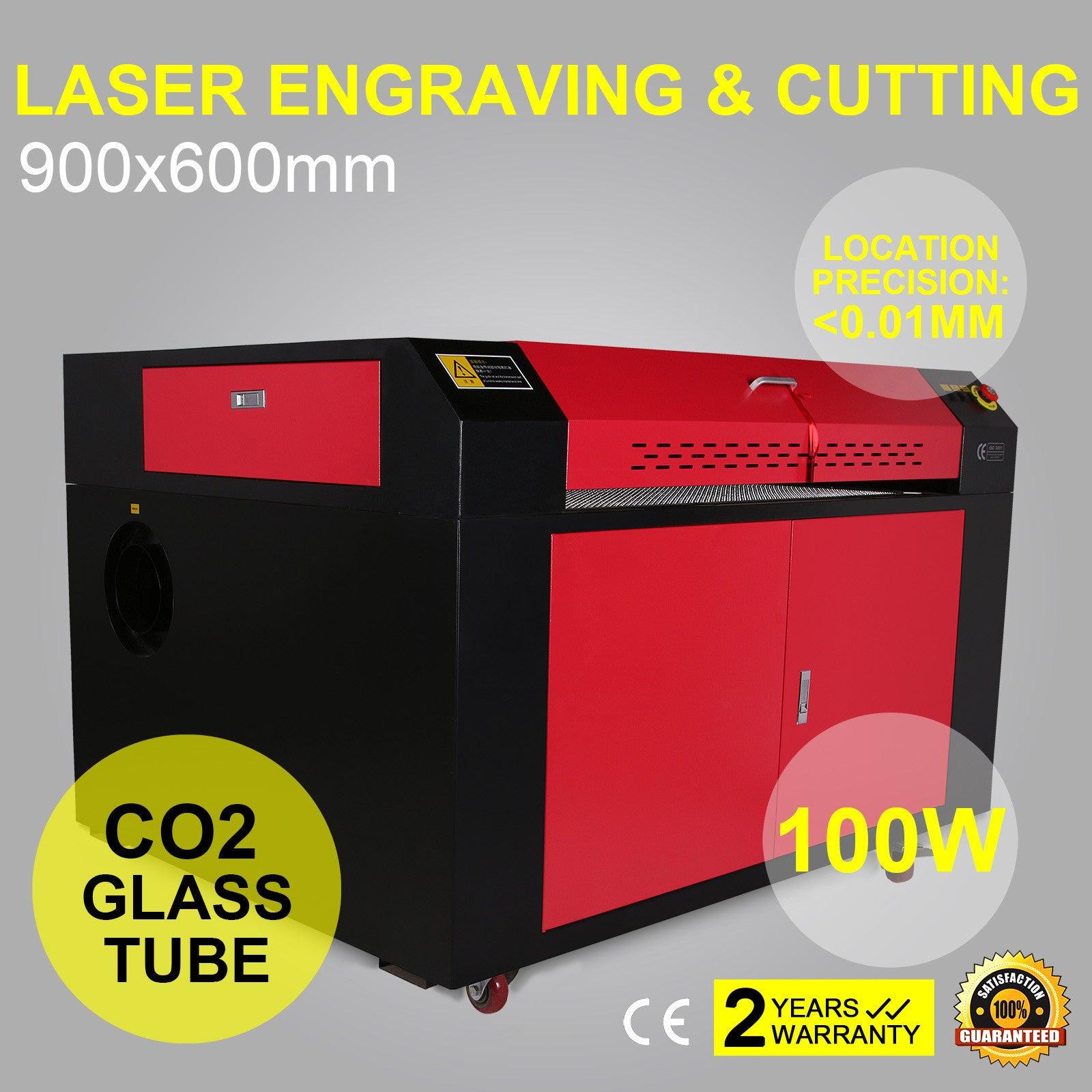

·Working size: 35.4"x23.6"(900mm x 600mm) double-sided door opening
·Upper and lower work plates: 15.7" (400mm)
·Laser tube type: CO2 glass sealed laser tube
·Laser power: 100W
·Drive type: micro stepper motor
·Maximum speed: 1000mm/s
·Resolution: 1000 DPI
·Positioning accuracy: 0.01mm

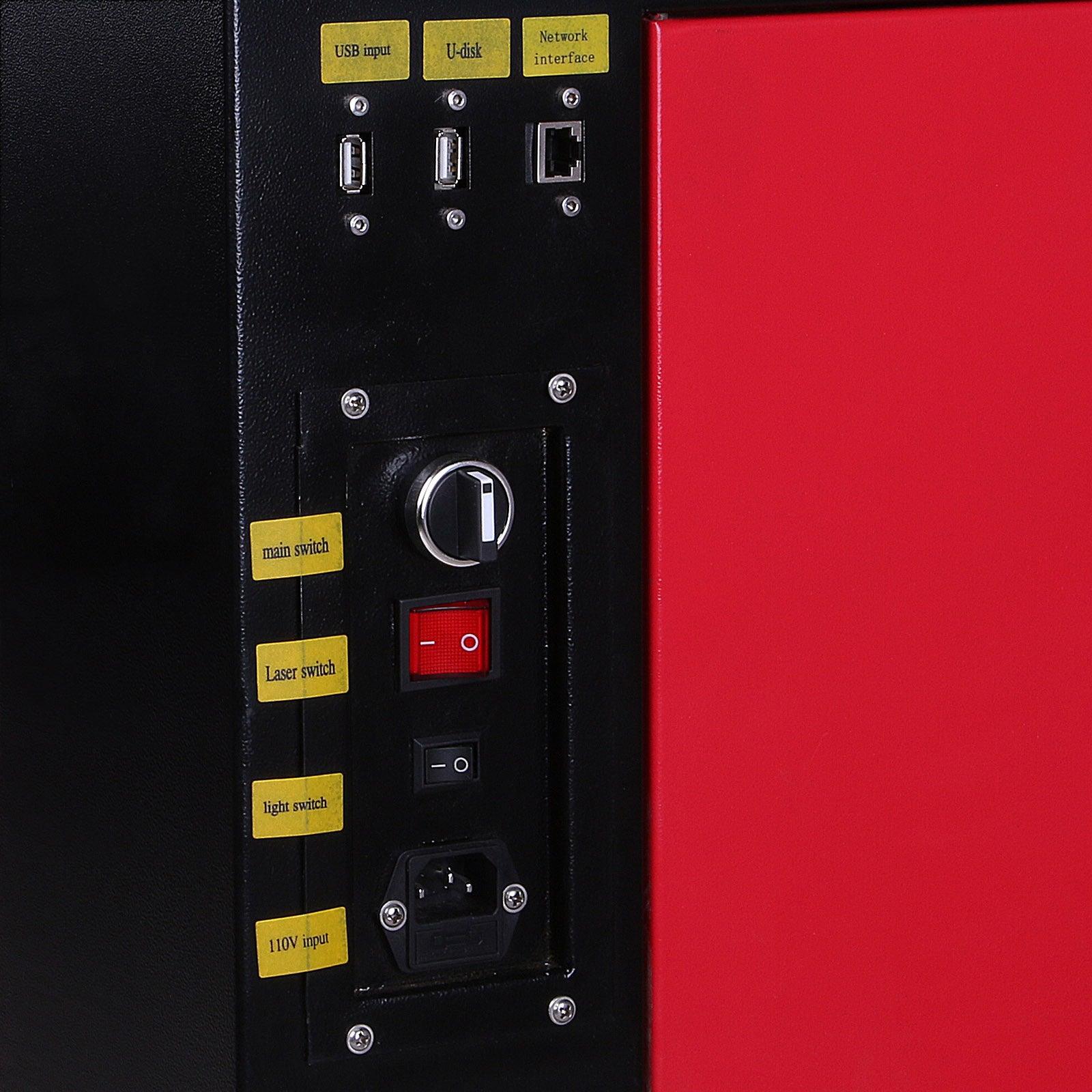

·PC interface: USB2.0 and U disk
·Software: automatic laser
·Image format: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
·Machine size (length/width/height): 1500*1080*1100 (mm)
·Packaging size (length/width/height): 1590*1560*1310 (mm)
·Packaging: Export standard wooden box
·Net weight: 270KG
·Gross weight: 400KG

Package:

·Laser engraving software package (English version)
·User Manual (CD)

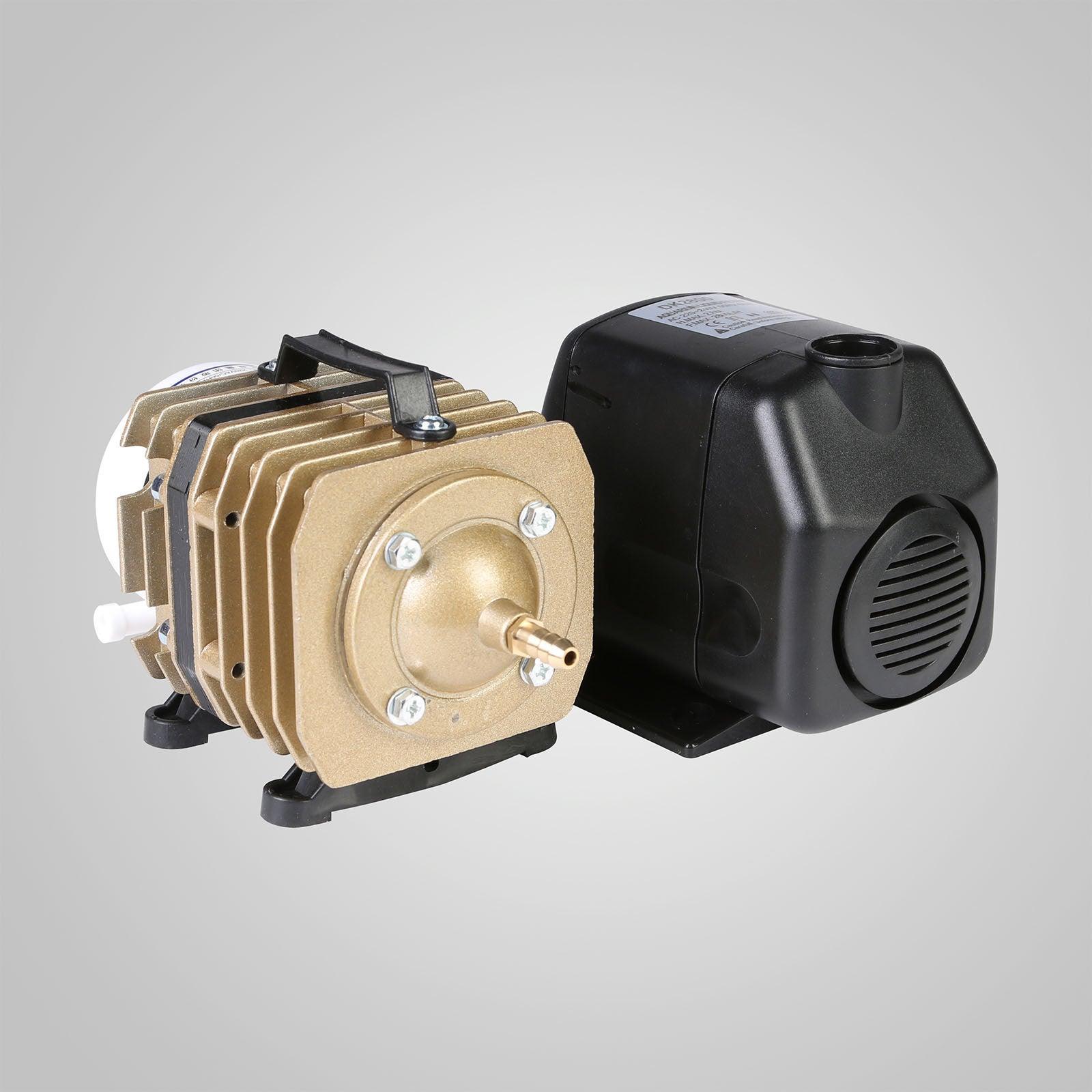

·Water pump
·Exhaust fan
·air pump
·Communication cable
·3 reflective optical elements (installed in the machine)
·1 focusing optic (installed in the machine)
·1 laser tube
